3.1. An Overview of the STELAR KLMS

In order to descibe the functions of the client, we will first provide an overview of the STELAR KLMS. The STELAR KLMS is a system that provides a unified interface for managing and accessing data, tools, and workflows. It is designed to support the entire data lifecycle, from data ingestion and storage to analysis and visualization. The STELAR KLMS is built on a microservices architecture, which allows for flexibility and scalability. It is designed to support a wide range of use cases, including data science, machine learning, and artificial intelligence.

If we were to describe the main functions of the STELAR KLMS, we would say that it is a system for:

  1. Storing and managing data, mainly in the form of files (images, tabular data, etc.)

  2. Applying data analysis tools, via which data is transformed and analyzed. Tools are executed as tasks or workflow processes. Workflows are defined as a series of tasks that can be executed in parallel or sequentially (e.g., data processing, machine learning, etc.).

  3. Collecting and managing metadata pertaining to the datasets, tasks and processes in the system. Metadata is automatically collected and searchable in several ways, including spatial search and ad-hoc SparQL queries.

Our overview will examine the STELAR KLMS from three perspectives:

  1. The concepts that underpin the STELAR KLMS in its three main functions.

  2. The architecture of the STELAR KLMS, including the microservices that implement the functions.

  3. The STELAR authorization scheme, which controls access to the system and its operations.

Important parts of the STELAR KLMS that are not covered fully in this document include:

  • The STELAR Knowledge Graph, which is a graph-based representation of the data and metadata in the system.

  • The STELAR deployment framework, which is a set of tools and libraries for deploying and managing the STELAR KLMS in a cloud environment.

  • The STELAR tools, a suite of sophisticated data analysis tools that are available in the STELAR KLMS. Each of these tools is quite sophisticated and has its own documentation.

  • The STELAR extensibility guidelines, which allow users to extend the functionality of the STELAR KLMS by adding custom tools and extension APIs.

All of the above topics are covered in various STELAR project documents, which is available at the STELAR site.

Note

The STELAR KLMS is a complex system, and this overview is intended to provide a high-level understanding of its components and functions. For more detailed information, please refer to the STELAR documentation and the STELAR project site.

Note

The STELAR KLMS is a complex system, and this overview is intended to provide a high-level understanding of its components and functions. For more detailed information, please refer to the STELAR documentation and the STELAR project site.

3.1.1. The Main Concepts of the STELAR KLMS

Working with STELAR, the main function that you will be performing is to manage data and metadata. As far as data is concerned, the STELAR data lake provides access to its data via the Amazon S3 API. The data is stored in a distributed file system, which allows for high availability and scalability.

3.1.1.1. Concepts of the S3 Data Store

For an in-depth desciption of the S3 data store, please refer to the Amazon S3 documentation. In addition, the Minio documentation provides a good overview of the S3 API and its features. The Minio documentation is available at the Minio site.

The data is organized into buckets, which are similar to volumes (or partitions) in a file system. The creation and configuration of buckets is done by the STELAR system administrator. Then, client applications can access the buckets and their contents via some S3 SDK.

The data is stored in objects, which can be like of any type (e.g., images, tabular data, etc.). From the point of view of the system, an object is a binary large object (BLOB) that is stored in a bucket. The size of an object can be from a few bytes up to 5 TB, and the maximum number of objects in a bucket is unlimited (although the total size of all objects in a bucket is limited by the size of the bucket). Objects are identified by a unique key, which is a combination of the bucket name and the object name.

There is no proper folder structure in the S3 data store. However, the object names can be split into parts using the slash (/) character, which can be used to create a pseudo-folder structure.

Objects are accessed via a URL, which is a combination of the bucket name and the object name. Suppose that we have a bucket named mybucket and an object named myfolder/myfile.txt. To access the object name we would combine the bucket name and the object name into URL, as follows: ` s3://mybucket/myfolder/myfile.txt `

There is a special category of objects called directory objects. These are objects of size 0 bytes, whose name ends in a slash (/). Directory objects are used to create a pseudo-folder structure in the S3 data store.

3.1.1.2. STELAR entities

Outside of the S3 data store, the STELAR KLMS comprises a number of entities that are used to represent data, metadata, users, execution tasks, etc. All entities share some common characteristics, and are managed via the STELAR API, a ReSTful API implemented over http. The entities in the STELAR KLMS can be categorized into the following groups:

  • Entities to describe data and metadata: - Datasets, which describe collections of data. - Resources, which are members of datasets and represent actual data files or metadata files. - Tags, which are labels attached to a dataset. - Vocabularies of tags, which create namespaces for tags.

  • Entities to organize the whole catalog of Entities: - Organizations, which are top-level entities that are collections of other entities. - Groups, which are similar to organizations but are more suited for organizing ad-hoc collections of entities.

  • Users, entities that represent the users of the STELAR KLMS.

  • Entities related to the execution of tasks and processes: - Tasks, which are the execution of a tool on datasets. - Processes, which are the execution of a workflow (a series of tasks). - Workflows, which represent metadata about processes. Each process may be related to a workflow entity. - Tools, which represent the data analysis tools available in the STELAR KLMS.

All of these entities are stored in a Knowledge Graph (KG) and can be searched using SPARQL queries.

Entity fields

Entities can be thought as JSON objects, and each has a number of fields, depending on its type. Some fields are common to all entities, while others are specific to the type of entity. Some fields are set and maintained by the STELAR KLMS, while others are set and maintained by the user. The fields set and maintained by the system are marked as (system), which means that they are read-only and cannot be modified by the user. Fields may be updatable, while others are immutable (cannot be changed after they are created). Also, some fields are mandatory (cannot be null), while others are optional (can be null).

Finally, some types of entities support extras, which are custom fields set by the user.

The fields common to all entities are:

id (system)

The unique identifier of the entity. This is a UUID (Universally Unique Identifier) that is generated by the STELAR KLMS when the entity is created. The UUID is a 128-bit integer that is used to identify the entity in the system.

type (system)

The type of the entity. This is a string that indicates the type of the entity, such as “dataset”, “resource”, “user”, etc.

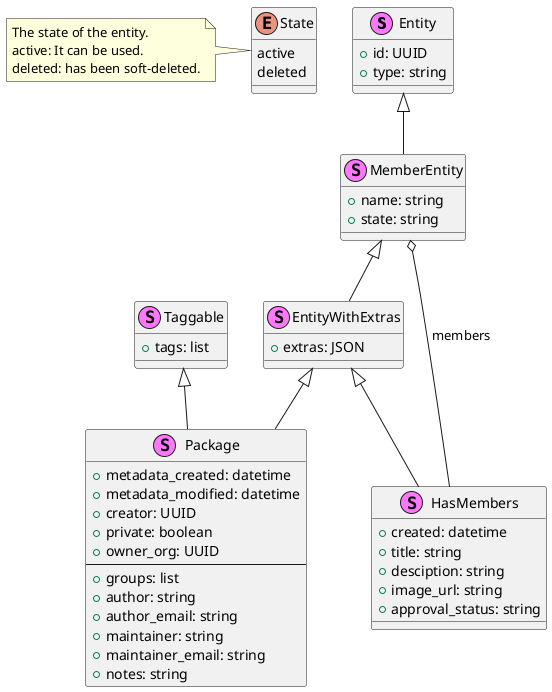

Entity stereotypes

Several entities have common parts and characteristics. We can represent these common parts as stereotypes. The stereotypes are represented as a “class hierarchy” in a UML class diagram, where the subclasses inherit the fields of their superclasses.

For example, the Package stereotype is a sub-class of the EntityWithExtras stereotype, meaning that those entities which are Packages, all have an “extras” field, inherited from EntityWithExtras.

_images/stereotypeents.png

Entities

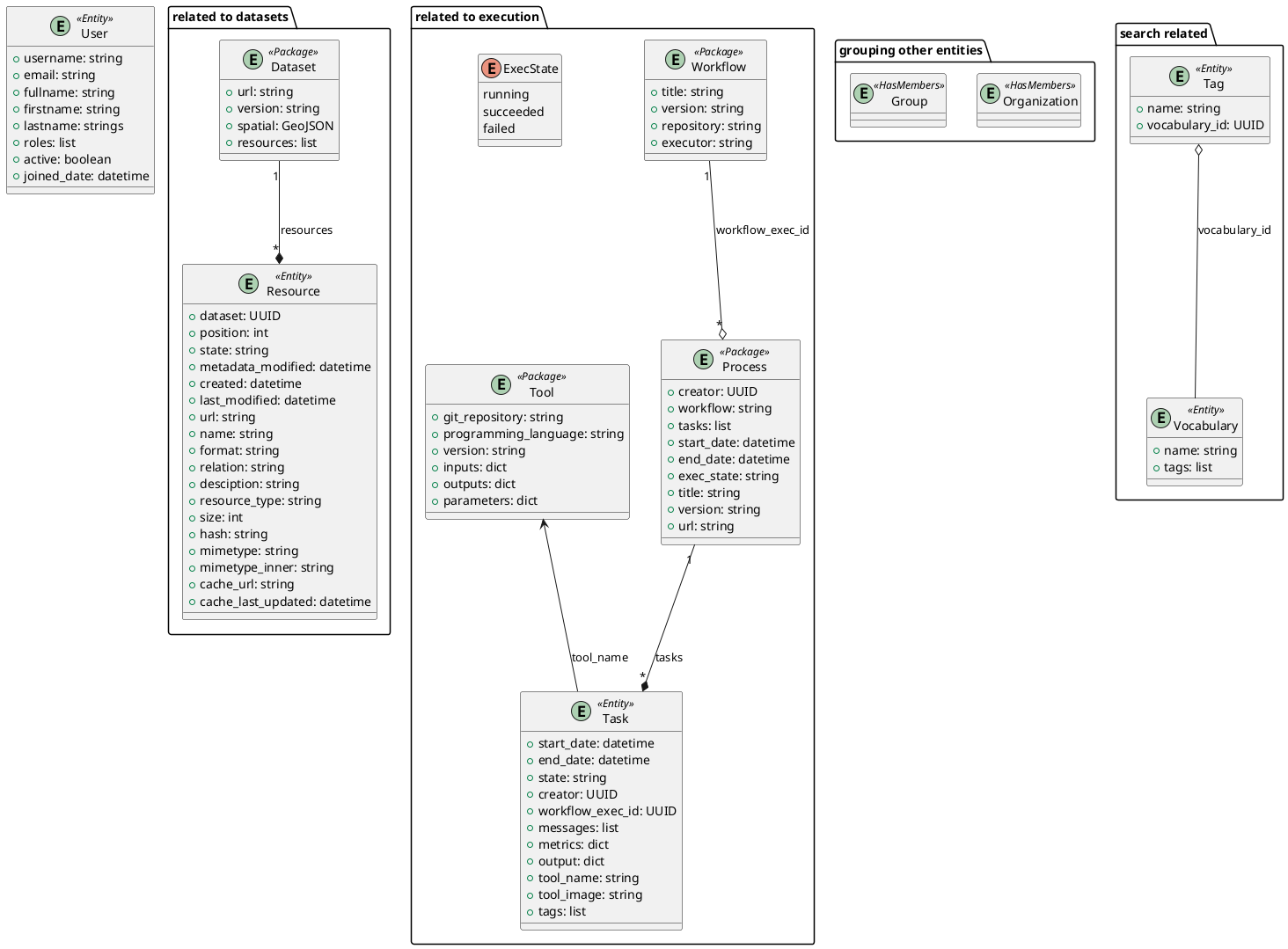

The entities of STELAR are shown below. They are labeled by their most specific stereotype. The attributes shown in the diagram below are attributes in addition to those inherited from the entity stereotype.

_images/entitiescls.png

The entities can be classified according to their use:

  • Entities related to datasets:

    • Dataset

    • Resource

  • Entities related to search:

    • Tag

    • Vocabulary

  • Entities related to grouping:

    • Organization

    • Group

  • Entities related to execution:

    • Task

    • Process

    • Workflow

    • Tool

  • Entities related to the system:

    • User

3.1.1.3. Datasets

The main metadata entities in the STELAR KLMS are datasets and resources. They are both types of entities of the STELAR Data Catalog.

A dataset is a collection of data. A dataset can be a single object or a collection of objects that are related to each other. Note that the data in a dataset need not be stored in the STELAR data lake. It can be stored in any other data store, such as a relational database or a NoSQL database, or even to be provided by a service online.

A dataset has several fields, which include the following:

name (immutable)

The name of the dataset. The name is a string containing only alphanumeric characters, underscores (_), and hyphens (-). The name must be unique within the STELAR KLMS and cannot be changed after the dataset is created. The name can be used to identify the dataset in the system (similar to the dataset id) but is human-readable.

state (system)

Whether the dataset entity is active or deleted. STELAR supports “soft delete” semantics, where a deleted dataset is not actually removed from the system, but instead its state is set to deleted. This allows for easy recovery of deleted datasets. If it is desired to actually remove a dataset, the delete operation must be designated as a purge.

metadata_created (system)

The date and time when the dataset was created. This field is set by the STELAR KLMS when the dataset is created. The date and time is in ISO 8601 format (YYYY-MM-DDTHH:MM:SSZ).

metadata_modified (system)

The date and time when the dataset was last modified. This field is set by the STELAR KLMS when the dataset is modified. The date and time is in ISO 8601 format (YYYY-MM-DDTHH:MM:SSZ).

creator (system)

The creator of the dataset. This field is a UUID that describes the creator of the dataset and is used to identify it in the system.

private (mandatory)

A boolean field that indicates whether the dataset is private or public. This field is used to control access to the dataset. More details will be provided in the section on the STELAR authorization scheme.

owner_org (mandatory)

The organization that owns the dataset. This field is a UUID that identifies the organization which owns the dataset.

groups

The groups this dataset is a member of.

Apart from the above fields, a dataset entity has many fields that describe the actual dataset. These fields are:

title

The title of the dataset. This is a string that describes the dataset and is used to identify it in the system.

author:

The author of the dataset.

author_email

The email of the author of the dataset.

maintainer

The maintainer of the dataset.

maintainer_email

The email of the maintainer of the dataset.

notes

A string containing free-text information about this dataset.

tags

The tags of the dataset. This is a list of strings that label the dataset.

url

The URL of the dataset. If not null, this is a string that describes the location of the dataset and is used to access it in the system.

version

The version of the dataset. This is a string that describes the version of the dataset and is used to identify it in the system.

spatial

The spatial extent of the dataset. This field, if not null, must be a GeoJSON object that describes the spatial extent of the dataset.

resources (system)

The list of resources that are part of the dataset. Resources are described in the next section.

extras

This attribute takes as its value a JSON object that contains user-defined fields. The name of a user-defined field should be a valid python name (although this is not enforced). The value of a user-defined field can be any JSON object.

3.1.1.4. Resources

A dataset may contain a list of resources, which represent actual data files that are part of the dataset, or metadata files that describe the dataset. One such prominent metadata file is the profile of the dataset, which is a file that contains metadata about the dataset itself. The profile is a JSON file whose format depends on the type of the dataset (i.e., whether the data is tabular, image, etc.). The profile is used to describe the dataset and its contents, and it is used by the STELAR KLMS to generate metadata about the dataset. Each resource contains some standard fields, which include the following:

dataset (system)

The dataset that this resource is part of. This field is a UUID that identifies the dataset in the system. The dataset is the parent of the resource.

position (system)

An integer specifying the rank of the resource in the dataset’s resource list. This field is managed by the STELAR KLMS and cannot be set directly by the user.

state (system)

The state of the resource. This field is managed by the STELAR KLMS and cannot be set directly by the user. The state can be active or deleted. STELAR supports “soft delete” semantics, where a deleted resource is not actually removed from the system, but instead its state is set to deleted. This allows for easy recovery of deleted resources. If it is desired to actually remove a resource, the delete operation must be designated as a purge.

created (system)

The date and time when the resource was created. This field is set by the STELAR KLMS when the resource is created. The date and time is in ISO 8601 format (YYYY-MM-DDTHH:MM:SSZ).

metadata_modified (system)

The date and time when the resource was last modified. This field is set by the STELAR KLMS when the resource is modified. The date and time is in ISO 8601 format (YYYY-MM-DDTHH:MM:SSZ).

Also, the resource entity has many fields that describe the actual resource. These fields are:

name

The name of the resource. Unlike the dataset name, the resource name is not unique in the system, or even within the dataset, and it can be null.

url

The URL of the resource. This is a string that describes the location of the resource and is used to access it in the system. If the URL scheme is s3, the URL designates an object stored in the STELAR data lake.

format

The format of the resource. This is a string that describes the data format of the resource and is used to identify it in the system. The format can be csv, json, excel, xml, png, parquet etc.

relation

The relation of the resource to the dataset. This is a string that describes the relation of the resource to the dataset and is used to identify it in the system. The relation can be owned or profile.

resource_type

The type of the resource.

description

A string containing free-text information about this resource.

size

The size of the resource. This is an integer that describes the size of the resource in bytes.

hash

A string that somehow represents a hash value for the contents of the resource. Nominally, when this value changes, it indicates that the contents of the resource have changed. It is custom to use the SHA-256 hash algorithm to compute this value. However, this is not enforced by the STELAR KLMS, and the user can set this value to any string.

last_modified

The date and time when the data of this resource was last modified. This field is maintained by the user, not by the STELAR KLMS. The date and time is in ISO 8601 format (YYYY-MM-DDTHH:MM:SSZ).

mimetype

The MIME type of the resource. This is a string that describes the MIME type of the resource and is used to identify it in the system. The MIME type can be text/csv, application/json, application/vnd.ms-excel, image/png, application/x-parquet etc.

cache_url

A url designating a cached copy of the resource. The caching is user-defined and is not managed by the STELAR KLMS.

cache_last_updated

The date and time when the cache was last updated. This field is maintained by the user, not by the STELAR KLMS. The date and time is in ISO 8601 format (YYYY-MM-DDTHH:MM:SSZ).

3.1.1.5. Organizations and groups

Organizations and groups are used to organize other types of entities in the STELAR KLMS. They both follow the <<HasMembers>> stereotype, which means that they can have as members any entity of the <<MemberEntity>> stereotype.

These two types of entities are very similar, as they support the same attributes. The only difference is that organizations are “top-level” entities that partition datasets (and some other types of entitites).

Organizations are meant to represent collections of datasets, processes and workflows that are somehow semantically related. Also, organization membership can be used provide authorization to users for certain operations (more on this issue will be provided in the section on the STELAR authorization scheme).

One use case for organizations is to implement data lake zones, which are used to separate data in the data lake into different areas. For example, a data lake may have a raw zone where data is ingested, a clean zone where data is cleaned and transformed, and a analysis zone where data is used for analysis and reporting. In general, zones partition datasets depending on the data lifecycle stage they are in. Another use case for organizations is to implement data governance policies, which are used to control access to data and ensure that data is used in a compliant manner. For example, an organization may have a policy that requires data to be encrypted at rest and in transit, or that requires data to be anonymized before it is shared with third parties. Another use case for organizations is to implement data stewardship policies, which are used to ensure that data is managed in a consistent and compliant manner. For example, an organization may have a policy that requires data to be classified according to its sensitivity level, or that requires data to be retained for a certain period of time. Groups are used to organize other types of entities in the STELAR KLMS. Groups are similar to organizations, but they are not top-level entities and do not partition datasets. Groups are used to organize users and other entities in the system, and they can be used to control access to data and tools.

Groups can be used to implement data sharing policies, which are used to control access to data and ensure that data is shared in a compliant manner. For example, a group may have a policy that requires data to be updated only by certain user roles, or that requires data to be shared only for certain purposes.

Groups can also be used to implement dataset cataloging, where datasets organized in the same group can be related as to their contents, or some application-specific criteria.

MemberEntity: Members of organizations and groups

The entities associated with an organization or group are called its members. The following entities can be members of an organization or group:

  • datasets

  • processes

  • workflows

  • tools

  • users (users can belong to multiple organizations and groups)

  • groups (groups can be members of other groups)

  • organizations (organizations are rarely members of a group or organization, but they can be)

Each member of a group has joined the group under a specific capacity. Capacities are strings whose semantics are user-defined. The STELAR KLMS will add members to a group or organization with a specific capacity, but it will not enforce any semantics on the capacity.

3.1.1.6. Packages

The <<Package>> stereotype is used to represent a collection of entities that have some important common characteristics.

Searchability

All packages can be searched in a very flexible manner. STELAR supports the Apache Solr search engine, which allows for full-text search, faceted search, and spatial search. The search engine is used to index the entities in the STELAR KLMS and provide a unified search interface for all entities.

They support tags

Tags are labels assigned to packages, that allow for easy classification and labeling. They can be used as search targets

Owner organization

Every package in the STELAR KLMS is owned by an organization, as defined the attribute owner_org. The owner organization is typically used to control access to the entity. The owner organization is set when the entity is created, but it can be changed later (although this should be rare).

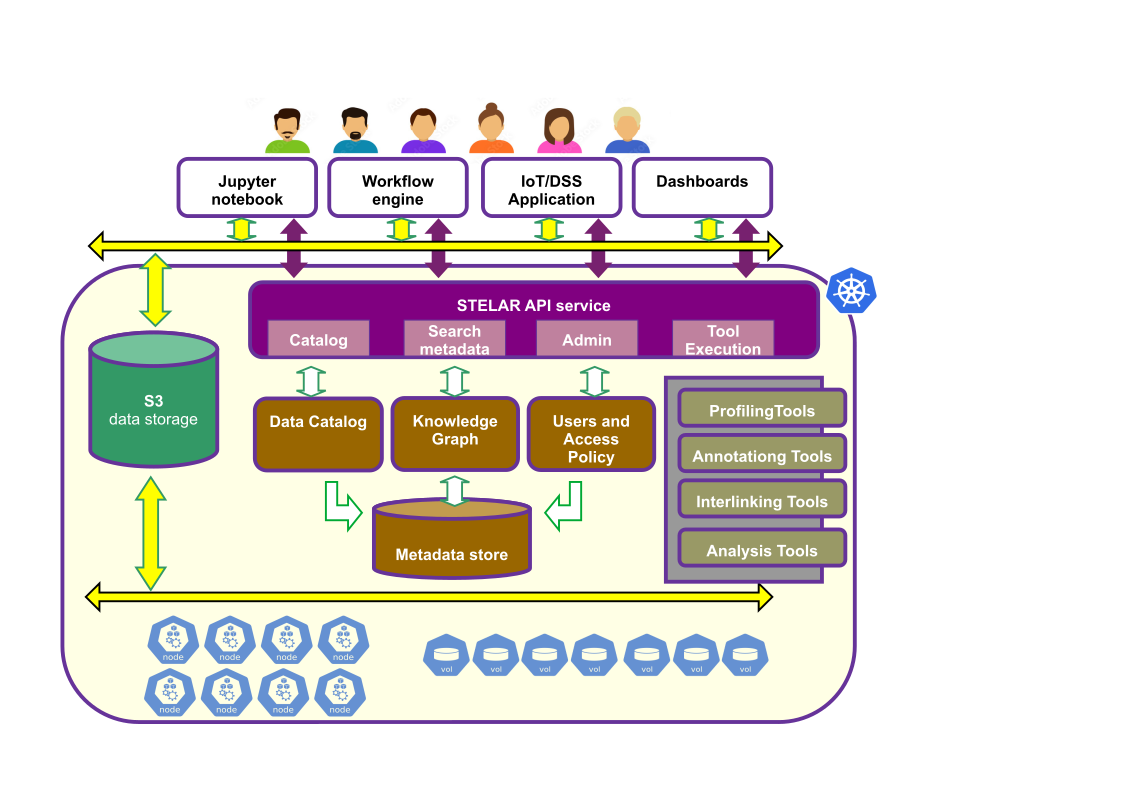

3.1.2. Architecture of the STELAR KLMS

The STELAR KLMS is built on a microservices architecture, which allows for flexibility and scalability. The platform on which STELAR runs is a Kubernetes cluster, which is a container orchestration platform that allows for the deployment and management of microservices. The STELAR KLMS is composed of several microservices, each of which is responsible for a specific function.

Architecture of the STELAR KLMS

Some important points in the architecture are:

The clients of STELAR (shown in white)

The STELAR klms is designed to be used by several types of clients, which can be interactive (like a Jupyter notebook), batch-oriented (like a workflow engine or ML pipeline manager), or even on the background (the STELAR KLMS is used as back-end for a decision-support software).

The STELAR API service (shown in purple)

This is a service providing endpoints for all the STELAR KLMS functions. It is a ReSTful API that is implemented over http. The STELAR API service is the main entry point for all client applications that want to access the STELAR KLMS, regardless of whether the clients perform data ingestion, data analysis, metadata search, etc.

The S3 data storage (STELAR data lake, shown in green)

This is a distributed file system that is used to store the data and metadata in the STELAR KLMS. The STELAR data lake is built on top of the Minio object storage system, which is an open-source implementation of the Amazon S3 API. For performance, access is directly to the Minio object storage system, and not via the S3 API. However, this may lead to some inconsistencies in the metadata, if for example the user deletes an object in the Minio system without notifying the STELAR KLMS. The STELAR KLMS will not be able to detect this inconsistency immediately.

The KLMS services (shown in brown)

These are the microservices that implement the functions of the STELAR KLMS. They are not normally visible to the user, therefore we only discuss them briefly. The main components are: - The metadata database which is implemented by a PostgreSQL database with GIS extensions. - The Data Catalog service, which is implemented by the CKAN system. CKAN is an open-source data catalog system that provides a unified interface for managing and accessing data. - The Knowledge Graph service, which is implemented by the OnTop service. - The user management and authentication service, which is implemented by the Keycloak system. Keycloak is an open-source identity and access management system that provides a unified interface for managing users and authentication.

The STELAR tools (shown in gray)

These tools are advanced data analysis tools that are available in the STELAR KLMS. They are mainly responsible for data profiling, data annotation, data interlinking and data transformation and analysis. Each of these tools is quite sophisticated and has its own documentation.

The Kubernetes cluster (shown in blue)

Although not normally visible to the user, access to the Kubernetes cluster is often important in order to administrer the STELAR KLMS. Since tasks are executed as Kubernetes Jobs, the cluster is also somewhat relevant to tool implementors, especially if they have advanced requirements for the execution environment of their tools.

3.1.2.1. Acessing the STELAR KLMS

The STELAR KLMS provides several APIs and GUIs for accessing its functions. These include:

  • The STELAR API, which is a ReSTful API that provides access to the STELAR KLMS and its functions. The STELAR API can be invoked either directly (via http) or via the STELAR client.

  • The STELAR web interface, which is a web-based GUI suitable for inspection and some basic operations.

  • The Minio-based S3 API, which provides access to the STELAR data lake and its contents. The S3 API can be invoked either directly (via http) or via the STELAR client. There are numerour S3 SDKs available for different programming languages, which can be used to access the STELAR data lake.

  • The Minio console interface, which is a web-based GUI suitable for inspection and some basic operations on the STELAR data lake.

  • For user management and Single Sign-On, the STELAR KLMS uses the Keycloak identity and access management system. Keycloak provides a web-based GUI for user management and Single Sign-On, and it is integrated with the STELAR KLMS.

  • For deployment, upgrade, and under-the-hood management of the STELAR KLMS, administrators and highly-trusted users can access the Kubernetes cluster via the Kubernetes API (or other relevant clients).

When a deployment of the STELAR KLMS is made, several DNS domain names are used in order to access the main parts of the system. All these names belong to the same base DNS domain. This is known as the DNS base of the deployment. In the following, we assume that the DNS base stelar.example.com.

URL

Component

https://klms.stelar.example.com/stelar

The STELAR API service base_url

https://klms.stelar.example.com/stelar/help

Returns a JSON object with hyperlinks.

https://klms.stelar.example.com/stelar/api

The STELAR API url

https://klms.stelar.example.com/stelar/docs

The STELAR API documentation

https://klms.stelar.example.com/stelar/console

The STELAR web interface

https://klms.stelar.example.com/s3

The Minio web console

https://minio.stelar.example.com/

The S3 minio API

https://kc.stelar.example.com/

The Keycloak web interface

3.1.3. The STELAR KLMS authorization scheme

STELAR KLMS authorization scheme is based on RBAC (Role-Based Access Control). Users are assigned to roles either directly or through group memberships. Each role is associated with a set of permissions that defines what actions has the role to perform on the platform’s resources. This RBAC model can be expressed using a declarative YAML-based specification language, that allows administrators to define custom policies documents, including the roles and their associated permissions, with a structured and human-readable format.

These custom policy documents are used as input to the STELAR KLMS Policy Management System, which is responsible to process the defined policies and translate them into service-specific authorization rules. The system is also responsible to evaluate access requests against the defined policies and update the the current authorization state of the system if a new policy document is applied, through a process called policy reconciliation.

In this way the STELAR KLMS authorization scheme provides a flexible and extensible way to manage access control in the platform, allowing administrators to define custom policies that fit their specific needs and requirements.

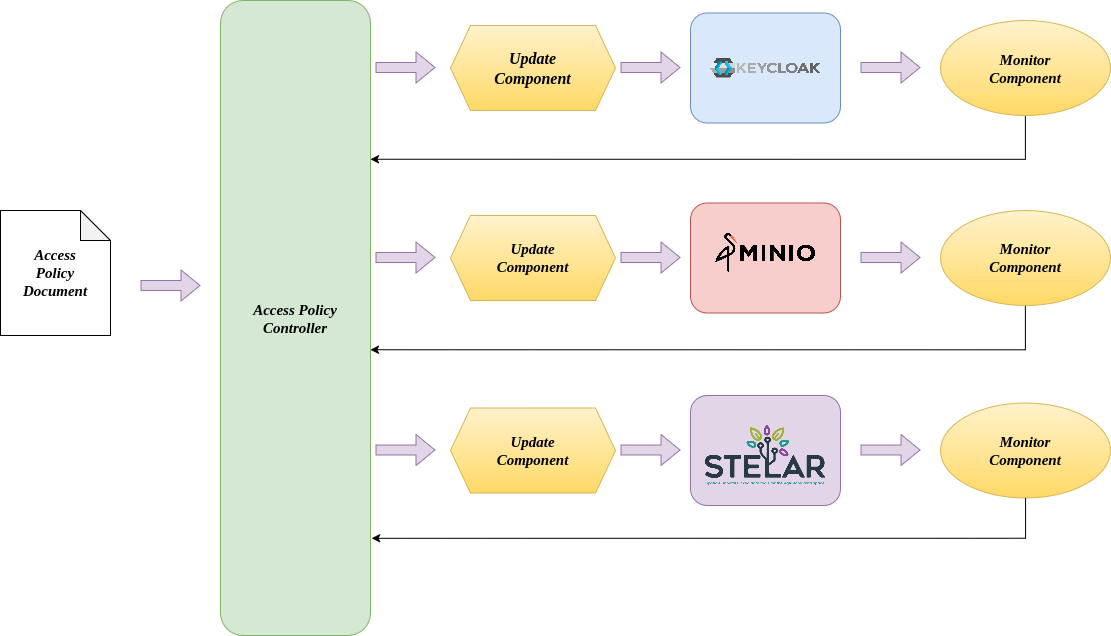

3.1.3.1. Policy Management System Architecture

The STELAR KLMS Policy Management System is composed of several components that work in conjuction to support all the lifecycle of the authorization policies, from their definition and management to their evaluation and enforcement. An architecture diagram of the Policy Management System is shown below:

Policy Management System Architecture

The main components of the Policy Management System are:

  • Access Policy Document: This is the input of the system. In this document, the administrator of the system describes the high-level authorization intents, including roles, resources, and actions, using the YAML-based policy description language.

  • Access Policy Controller: The core of the system, responsible for parsing the policy document and generating the necessary configurations for the underlying systems. Additionally, this is where the policy evaluation takes place. Every time a user tries to access a resource, the controller evaluates the policy document to determine whether the access should be granted or denied.

  • Monitor Component: Monitor component is responsible to keep track the current applied policies for each service. This component works in conjuction with the update component to ensure that the policies are up-to-date and consistent across all services.

  • Update Component: This is the component that is responsible for updating the policies if a change is detected in the policy document. It ensures that the policies are always in sync with the current state of the system.

3.1.3.2. YAML-based Policy Description Language

The language provides specific fields designed to support the definition of fine-grained access control policies. The general structure of the language is as follows:

roles:
  - name:
    permissions:
      - action:
        resource:

The core component of the policy specification is the roles field, where the roles to be created are defined. Multiple roles can be declared, each consisting of a name and a set of permissions. Permissions are expressed as pairs of action and resource, indicating what operations a role is allowed to perform and on which group of resources. The structure supports various action and resource specifications, enabling administrators to define access rules that align with the authorization mechanisms required by each individual STELAR component.

Actions and Alises

In addition to role and permission definitions, the language supports the use of the actions field, which allows administrators to define aliases for individual actions or action groups. These aliases act as descriptive identifiers for commonly used operations and can represent either a single action or a collection of related actions. A general structure for defining actions is as follows:

actions:
  - alias_name: ["action1", "action2", ...]

An usage example of the actions field is presented below:

actions:
  - readAll: ["read_Dataset", "read_Workflow", "read_Process"]

roles:
 - name: "Data Scientist"
   permissions:
     - action: "readAll"
       resource:
         ...

3.1.3.3. Permissions in STELAR KLMS

In STELAR KLMS, we distinguish two major types of permissions, each tailored to a distinct component of the platform:

  • Data Catalog/STELAR Permissions

  • Data Permissions

Each of these permission types supports a specific set of actions and resource specification schemes and are expressed in the policy document utilizing their respective YAML-based syntax. The following sections provide an overview of the permissions available for each type.

Note

STELAR adopts a default-deny (also known as implicit deny) access control model. Under this approach, access to a resource is granted only if an explicit permission is assigned. If a permission is not defined for a role, access to the corresponding resource is automatically denied—there is no need to declare explicit denial rules.

Data Catalog/STELAR Permissions

These permissions govern access to the data catalog (e.g., datasets) and STELAR-native entities such as processes and tasks. They are expressed using the “action-resourceSpec” pair and their general YAML syntax is as follows:

permissions:
    - action:
      resourceSpec:
         ...

Actions

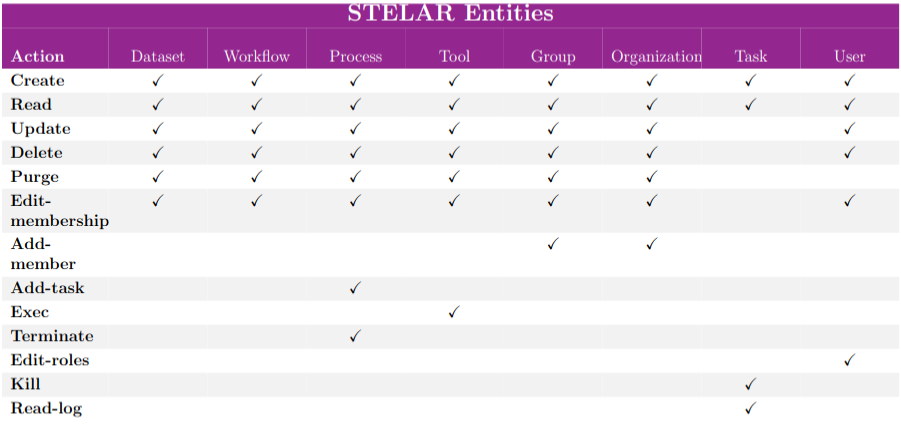

A detailed table that enumerates the actions available for the Data Catalog/STELAR permissions is provided below:

Actions for Data Catalog/STELAR Permissions

Note

In catalog/stelar permissions, actions are entity-specific—for example, read-Dataset and read-Workflow. While both actions represent a read operation, they apply to different resource types. In addition to the standard CRUD operations, actions that apply only on specific entities are also supported (e.g kill_Task, exec_Tool)

Resource Specification

Each permission includes a resource specification, which identifies the exact set of re- sources on which the defined actions can be applied. For catalog-related permissions, STELAR supports four types of resource specifications, which leverage the grouping and organizational models described to support flexible, fine-grained access control.

Attribute Resource Specification

This specification targets resources based on metadata attributes. For instance, datasets include attributes such as name, creation date, and identifier. Attribute-based filtering allows for defining access conditions such as “datasets created on 2023-10-01.” The structure of this specification ise represented below:

permissions:
     - action:
       resourceSpec:
         - attr:
           operation:
           value:

Where:

  • attr: Specifies the resource attribute used for constructing the access rule, such as the name, creation date, or description of the resource.

  • operation: Indicates the operation to evaluate the relationship between the attribute and its value. Operations can be:

    • equals: Checks if the attribute matches the specified value.

    • like: Checks if the attribute matches a pattern (e.g., using wildcards).

  • value: Represents the specific value the resource attribute must meet or match.

An example of a permission using the attribute resource specification is shown below:

permissions:
    - action: "update_Dataset"
      resourceSpec:
        - attr: "creation_date"
          operation: "equals"
          value: "2023-10-01"

Group Membership Resource Specification

This specification identifies resources based on their association with a specific group, as well as their type and functional role (capacity) within that group. It’s basic structure is as follows:

permissions:
    - action:
      resourceSpec:
        - type:
          group:
          capacity:

Where:

  • type: Indicates the type of resource, such as Dataset, Workflow, Process, Tool, Group, Organization, Task, or User.

  • group: Specifies the group to which the resources must belong.

  • capacity: Distinguishes resources within the specified group based on their unique characteristics or roles.

An example of a permission using the group membership resource specification is shown below:

permissions:
    - action: "delete_Dataset"
      resourceSpec:
        - type: "Dataset"
          group: "STELAR"
          capacity: "mainDataset"

Organization Membership Resource Specification

Similar to group-based specifications, this type filters resources by their organizational context, including resource type and capacity. Its basic structure is as follows:

permissions:
    - action:
      resourceSpec:
        - type:
          org:
          capacity:

Where:

  • type: Indicates the type of resource, such as Dataset, Workflow, Process, Tool, Group, Organization, Task, or User.

  • org: Specifies the organization to which the resources must belong.

  • capacity: Distinguishes resources within the specified organization based on their unique characteristics or roles.

An example of a permission using the organization membership resource specification is shown below:

permissions:
    - action: "update_Workflow"
      resourceSpec:
        - type: "Workflow"
          org: "STELAR"
          capacity: "mainWorkflow"

User Membership Resource Specification

This specification defines access based on a user’s membership within a group or organi- zation and the user’s specific capacity. Below is presented the general structure of this specification both for organization and group membership.

permissions:
    - action:
      resourceSpec:
        - group/org:
          capacity:

Where:

  • group/org: Specifies the group or organization to which the user must belong.

  • capacity: Indicates the user’s role or capacity within the specified group or organization.

An example of a permission using the user membership resource specification is shown below:

permissions:
    - action: "read_User"
      resourceSpec:
        - org: "STELAR"
          capacity: "admin"

Data Permissions

This type of permission governs access to resources stored in the platform’s storage layer. Specifically, it allows for the definition of access rules based on actions and resource targets within MinIO, the system’s underlying object storage. Permissions expressed in YAML are automatically translated into corresponding S3-compatible policies which are then assigned to user roles. An example of how such permissions are represented in YAML format is shown below:

permissions:
    - action:
      resource:

Actions

Actions in storage-layer permissions are based on the S3-compatible API exposed by MinIO. As such, STELAR leverages the same set of operations defined by AWS S3 poli- cies. These include actions such as s3:GetObject, s3:PutObject, and s3:DeleteObject, which correspond to read, write, and delete operations on objects stored in MinIO buckets.

Note

To enhance usability and reduce verbosity in policy definitions, administrators can take advantage of the action aliases feature. These aliases map to one or more low-level S3 operations. For example:

actions:
    - read: ["s3:GetObject"]
    - write: ["s3:PutObject"]
    - delete: ["s3:DeleteObject"]
    - list: ["s3:ListBucket"]

A full list of supported S3 actions can be found in the MinIO documentation: https://min.io/docs/minio/linux/administration/identity-access-management/policy-based-access-control.html#id5

An example of data type permission using the action aliases is shown below:

actions:
    - read: ["s3:GetObject"]
    - write: ["s3:PutObject"]
    - delete: ["s3:DeleteObject"]

roles:
  - name: "Data-Manager"
    permissions:
       - action: "read"
         resource: "my-bucket/*"
       - action: "write"
         resource: "my-bucket/my-object-1.txt"
       - action: "delete"
         resource: "my-bucket/my-object-2.txt"

3.1.3.4. Policy Reconciliation

In STELAR KLMS the access policy is dynamic and can be updated to adapt to evolving requirements of the data lake and its applications. To facilitate this, STELAR employs a reconciliation-based approach through the Access Policy Controller. This controller continuously monitors the actual access configurations of each STELAR component, it compares them against the desired configurations specified by the current Access Policy Model and afterwards implements necessary updates to achieve consistency and fidelity. Each component in the STELAR ecosystem features its own dedicated driver, consisting of a Monitor and an Update component instance. When the Access Policy Model is up- dated through a new Policy Document, the Access Policy Controller triggers an evaluation process, retrieves the current configuration for each component, identifies discrepancies, and applies the required conversions. These updates, might include invalidating existing JWT tokens, removing outdated permissions, and introducing new permissions to align with the updated policy.

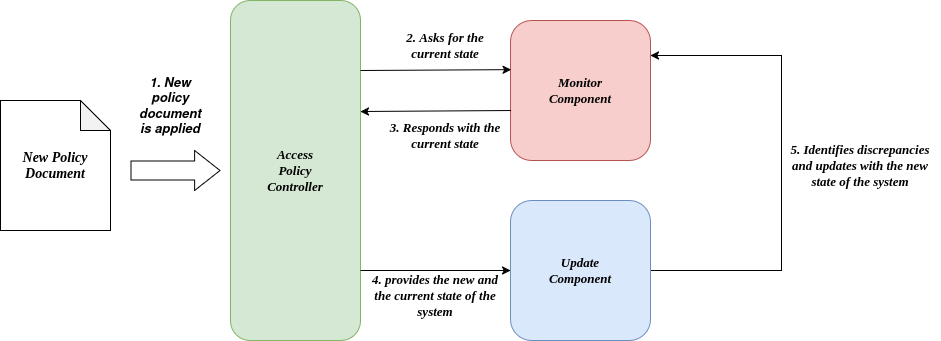

Policy Reconciliation Process
